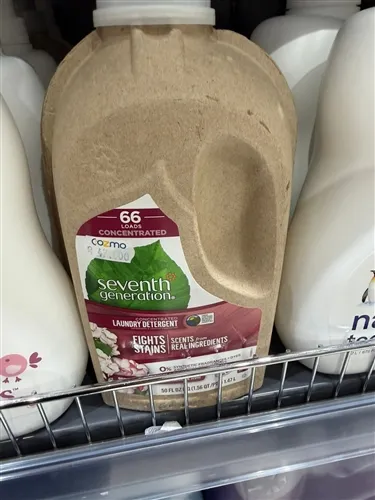

Why Molded Pulp Liquid Bottles Start Leaking on Day 3: A Real Project Postmortem

We ran into this issue repeatedly when developing molded pulp bottles for laundry detergent products.

What's interesting is that everything usually looks fine during factory testing. You fill the bottle with water, leave it for 24 hours-no leakage. Drop tests pass. Even customers reviewing samples often feel the product is already "ready for production."

But that's not where the real problem shows up.

The actual failure usually begins after the product leaves the factory-on day 2 or day 3.

The typical pattern is very consistent: first you notice slight dampness at the bottom, then parts of the bottle body start to soften, followed by minor seepage, and eventually it turns into visible leakage. It doesn't fail suddenly. It slowly "loses control."

When we broke down several cases later, it became clear that it was never a single issue. It was always a combination of four small weaknesses. Individually, none of them are critical. But over time, they stack together and eventually collapse the system.

The first issue is that you think the coating has already sealed everything

Most teams, especially the first time they work on this type of product, tend to focus heavily on the coating system-water-based PU or acrylic coatings, for example. And visually, they look great. The surface is smooth, and water droplets can roll off easily.

But the real issue is happening at the microscopic level.

Paper pulp is a highly irregular fiber network. The fibers are not perfectly bonded; there are always tiny channels between them. A coating applied on top can look continuous, but in reality, there are always micro-discontinuities that are invisible to the eye.

The more problematic part is that these defects do not fail immediately.

At the beginning, water doesn't "leak out"-it slowly penetrates in. By the time you notice anything, it has already been moving inside the fiber network for a while.

That's why a 24-hour water test often passes, but leakage appears after three days. It's not a sudden breakthrough. It's a slow and stable capillary migration process.

The second issue is that hot pressing is often not aggressive enough

This is something that gets underestimated in many factories.

A common assumption is that once the product is formed, the structure is fine. But for liquid-grade applications, forming is not the same as sealing the structure.

If hot pressing is insufficient, the internal fiber network remains partially "open." The surface may look dense, but inside there are still interconnected pores.

This creates a very specific behavior: it doesn't leak immediately, but it absorbs liquid.

So instead of liquid flowing out directly, it first gets absorbed into the structure-like a sponge-storing moisture internally.

Once saturation reaches a certain level, the system starts finding release paths. That's when leakage begins.

So in many real cases, it's not "leaking" in the beginning-it's "absorbing first, then releasing later."

The third issue is that surfactants are far more aggressive than water

This is one of the most common traps in early-stage development.

At the beginning, we also tested with water and thought everything was fine. But once we switched to actual laundry detergent, the behavior changed completely.

Surfactants don't immediately destroy the material. Instead, they gradually alter the interface.

In simple terms, they slowly reduce the surface's hydrophobic behavior, making it easier and easier for liquid to penetrate over time.

This is not a one-day process. It's gradual.

That's why you typically see a very clear timeline:

Day 1: no issue

Day 2: slight dampness appears

Day 3: clear leakage

It's essentially a slow weakening of the barrier system.

That's also why we later adopted a very simple internal rule:
If a design only passes water testing, it is not reliable.

The fourth issue is not the bottle body-it is the neck interface

This is more subtle and often overlooked.

Many engineers focus on the bottle body, but in real failures, the leakage often comes from the neck area.

Especially in embedded neck structures, the initial assembly is usually tight. Everything looks perfect at the beginning. But pulp-based materials have a slow dimensional drift behavior.

They absorb moisture, release internal stress, and slightly shrink or relax over time. These changes are not visible in the first 24 hours, but after 2–3 days, the interface begins to loosen microscopically.

This doesn't break the bottle. But it's enough to create a very thin leakage path.

And this path is invisible to the eye.

That's why you often see a strange situation: the bottle body looks completely fine, but moisture appears around the neck or bottom area for no obvious reason.

The real problem is not a single failure-it is system relaxation over time

After reviewing multiple cases, we came to a consistent conclusion:

The failure is not caused by one broken point. It is the gradual loss of system stability over time.

You can think of it as four processes happening in parallel:

The surface appears sealed, but micro-channels still exist

The structure is slowly absorbing liquid without showing it

The coating is gradually weakened by surfactants

The neck interface is slowly relaxing

Each one alone is not critical. But together, they converge around the 2–3 day mark and trigger visible failure.

The real design principle is surprisingly simple

We eventually reduced the whole problem to one sentence:

It's not about blocking water-it's about eliminating continuous liquid pathways.

As long as a continuous pathway exists, whether in the fiber, coating, or interface, failure will eventually happen.

So a design that actually works at scale must satisfy all three conditions at the same time:

The structure itself must not allow liquid ingress (not relying on coating alone)

The coating should act as a secondary interruption layer, not the primary barrier

The neck must be a mechanically locked structure, not friction-dependent

A final practical observation

We also developed a very simple rule of thumb internally:

If a sample can be judged as "good enough" only based on immediate testing, then the design is probably not reliable.

Because for molded pulp liquid systems, the real enemy is never the initial condition-it is time.
