| Description: |

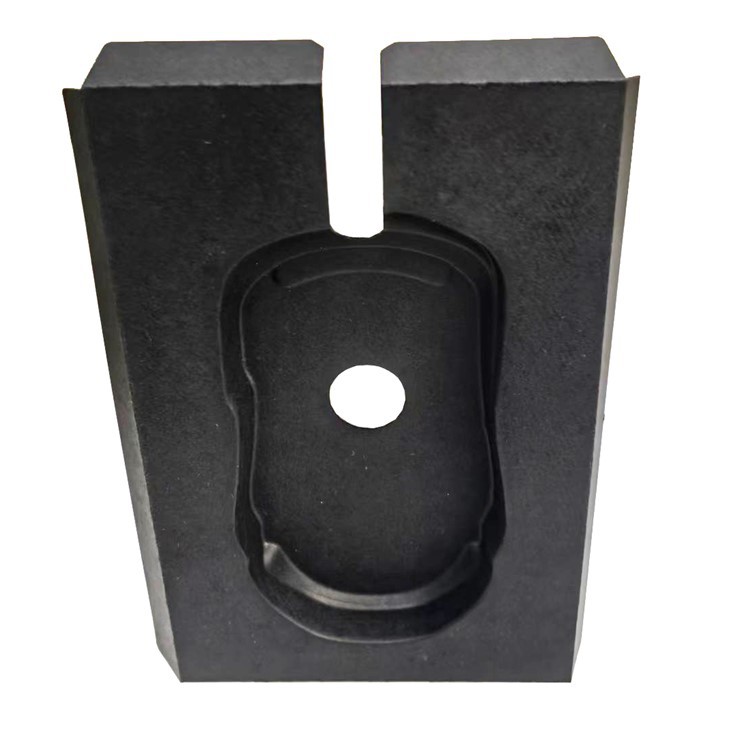

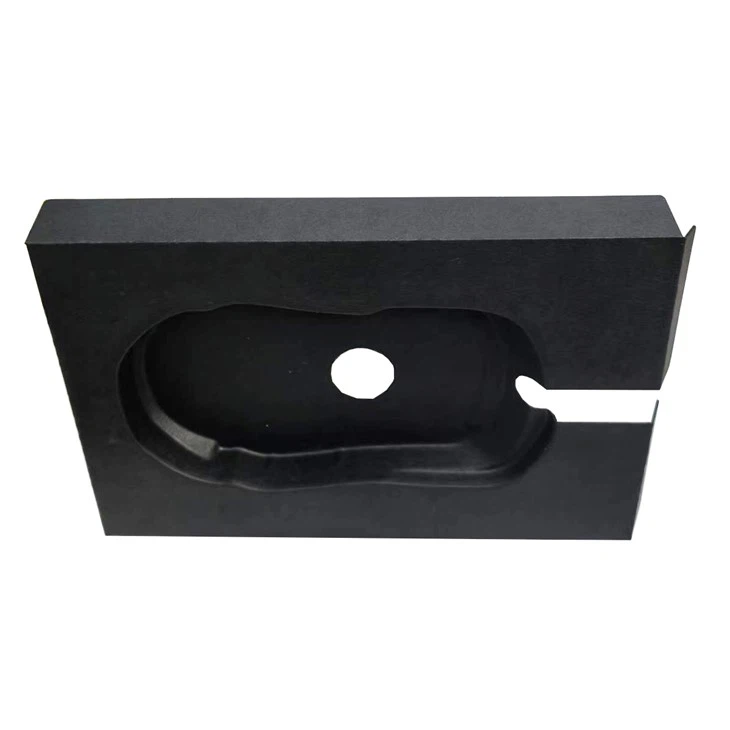

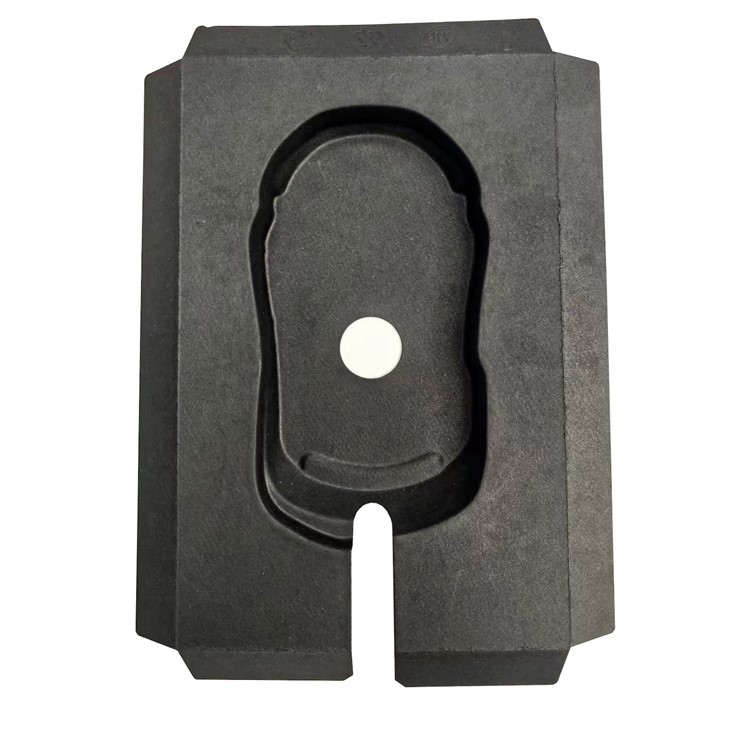

This molded pulp GPS tray is designed to provide reliable structural support and precise product fit for electronic packaging.
The tray measures 175 × 112 mm in its main body. With the folding edges extended, the overall size reaches 203 × 140 mm. Once folded upward, the edges align tightly with the inner walls of the outer carton, creating strong internal support and improving load stability during transport.
From the base to the top surface, the tray features a five-level three-dimensional structure. The contoured cavities are shaped to closely match the GPS device, ensuring secure positioning and minimizing movement or surface contact.

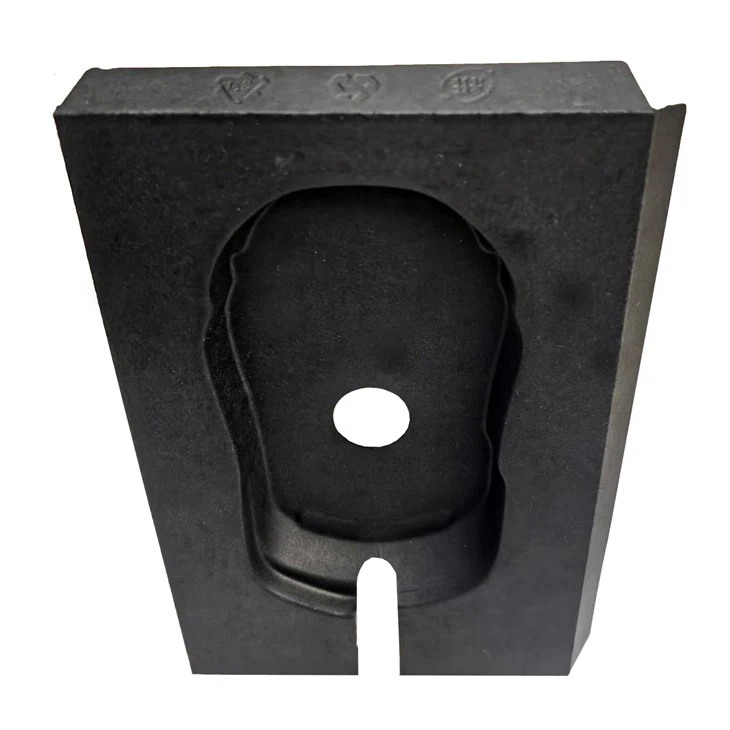

One folding edge is embossed with three environmental compliance symbols, meeting the requirements of Japanese and EU regulations. The embossing is clear and well-defined. On the symmetrical side, a continuous slot is integrated through the folding edge, allowing convenient placement of GPS accessories while enhancing the overall unboxing experience.

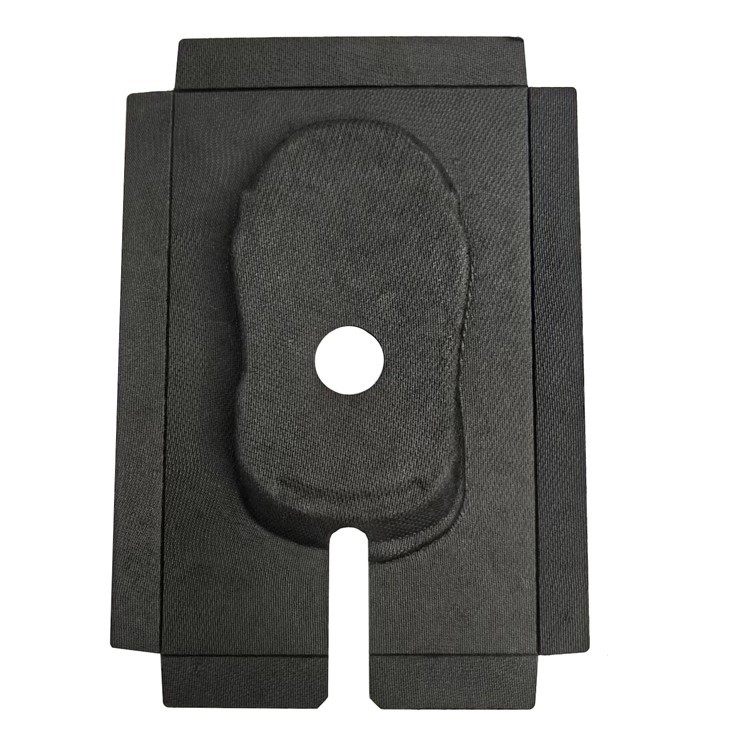

The front surface of the tray is smooth for direct product contact, while the reverse side is a natural fiber suction surface with a fine mesh texture, characteristic of the wet-press molding process. The tray is produced using virgin paper pulp blended with bamboo pulp, molded by wet-press technology, and finished in black.
This type of molded pulp tray is suitable not only for GPS and electronic products, but also for industrial components and daily consumer goods, offering a sustainable and structurally sound alternative to plastic packaging inserts. |
| Material: |
Produced using a wet-press molded fiber process, made from a blend of paper pulp and sugarcane fibers for strength and sustainability. |
| Color: |
Supplied in natural white as standard. Custom colors can be developed to meet specific project or branding needs. |
| Finish Processing: |
Formed by wet-press molding to achieve uniform density. The top surface is smooth for product contact, while the underside retains a natural fiber texture. |
| Industry Use: |
Designed for electronic product packaging and other applications where environmentally responsible packaging is required. |
| Sample policy: |
Standard samples are available for performance and fit evaluation. Customized samples may involve tooling costs depending on tray size and cavity structure. |
| Trade term: |
Supported incoterms include EXW, FOB, CFR, and CIF. |
| Payment term: |
T/T or PayPal accepted. – Stock items require full payment prior to shipment – OEM projects require a 30% deposit, with the balance settled before delivery |
| Lead time: |
Typical production time ranges from 10 to 25 days after specification approval and payment confirmation. |
| Note for OEM: |
Pricing is determined by tray dimensions, order volume, material selection, and customization complexity. Complete tray systems and fully assembled packaging solutions can be developed based on customer specifications. |
Hot Tags:
Thermoformed Fiber Packaging Solution
Eco-Conscious Pulp Packaging Tray
Precision-Fit Fiber Packaging Insert
Sustainable Paper Fiber Packaging
Carton-Supported Molded Fiber Tray
FAQ
1. What gives this tray enough load-bearing ability once packed?
Support is created by the interaction between the folding edges and the carton walls, allowing external forces to be distributed rather than concentrated on the product.
2. How flexible is the internal geometry during the design stage?
The internal form is not fixed. Depth transitions, stepped profiles, and contact points can be refined to match the physical behavior of the device.
3. Will environmental markings affect the tray's structural integrity?
No. Embossed symbols are formed during molding and do not weaken the fiber structure or reduce edge strength.
4. How does the surface finish influence product handling?
The smooth contact side minimizes surface abrasion, while the textured reverse improves friction against the carton base during placement.
5. What should be considered when planning an OEM version of this tray?
Key factors include outer box tolerances, product weight distribution, accessory placement, and the expected handling conditions throughout logistics.
